AIR-CORE/COIL

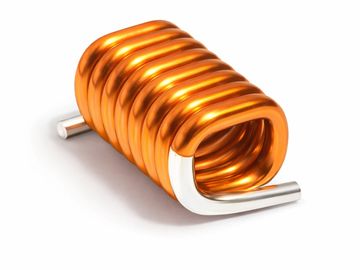

AW COIL square air core inductors are designed for RF and high-frequency applications, offering high Q and stable inductance. Air-core construction eliminates saturation and core loss.

Key Data

• Inductance: 5.5–27 nH

• Tolerance: ±5%

• Q (typ.): up to ~130

• SRF (typ.): up to ~5 GHz

• Irms (max.): up to ~4.4 A

• Package: 0806 / 0807 / 0908 SMD

• Compliance: RoHS

• Packaging: Tape-and-reel

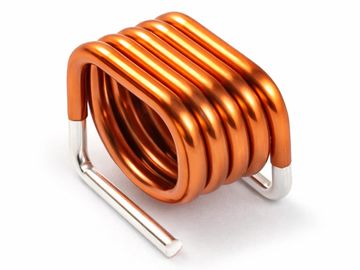

AW COIL square air core inductors are designed for RF and high-frequency applications requiring high Q, low loss, and stable inductance. Air-core construction eliminates saturation and core loss, supporting reliable performance across a wide frequency range.

Key Data

• Inductance range: 27 nH – 500 nH

• Q (min.): 140 – 230, depending on size

• Test frequency: 50 MHz / 400 MHz

• SRF (typ.): ~0.5 – 2.6 GHz

• DCR (max.): ~5.5 – 16.5 mΩ

• Rated current (max.): up to ~5.7 A

• Package sizes: 1111 / 1515 / 2222

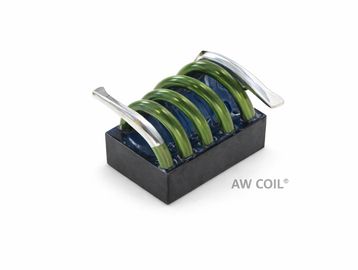

SMD flat-top air core inductors designed for RF and high-frequency applications, offering high Q, stable inductance, and reliable pick-and-place performance.

Key Data

• Inductance range: 2.5 – 18.5 nH

• Rated current (max.): 4.0 A

• Q (min.): 132 – 145 @ 150 MHz

• SRF (typ.): > 2.5 – 3.0 GHz

• DCR (max.): 1.1 – 3.9 mΩ

• Construction: Air core, flat acrylic top

• Operating temp.: –40°C to +125°C

• Package: AWAM1210 SMD

• Compliance: RoHS

• Packaging: Tape-and-reel, 700 pcs/reel

SMD flat-top air core inductors designed for RF and high-frequency applications, providing high Q, stable inductance, and reliable automated assembly.

Key Data

• Inductance range: 22 – 150 nH

• Rated current (max.): 1.2 – 3.5 A (value dependent)

• Q (min.): 100 @ 150 MHz

• SRF (typ.): ~0.75 – 3.2 GHz

• DCR (max.): 0.75 – 4.2 mΩ

• Construction: Air core, flat acrylic top

• Operating temp.: –40°C to +125°C

• Package: AWAM1812 SMD

• Compliance: RoHS

• Packaging: Tape-and-reel, 1200 pcs/reel

SMD flat-top air core inductors designed for RF and high-frequency applications, offering very high Q, stable inductance, and reliable automated assembly.

Key Data

• Inductance range: 22 – 30 nH

• Rated current (max.): 7.0 A

• Q (min.): 160 @ 150 MHz

• SRF (typ.): ~2.0 – 2.6 GHz

• DCR (max.): 2.5 – 3.0 mΩ

• Construction: Air core, flat acrylic top

• Operating temp.: –40°C to +125°C

• Package: AWAM2718 SMD

• Compliance: RoHS

• Packaging: Tape-and-reel, 1000 pcs/reel

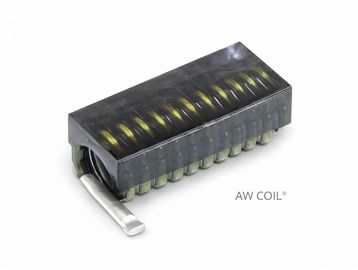

SMD flat-top air core inductors designed for RF and high-frequency applications requiring high Q, wide inductance range, and reliable automated assembly. Air-core construction eliminates saturation and core loss.

Key Data

• Inductance range: 90 – 538 nH

• Rated current (max.): 2.0 – 3.5 A (value dependent)

• Q (min.): 100 @ 50 MHz

• SRF (typ.): > 0.4 – > 1.0 GHz

• DCR (max.): 15 – 90 mΩ

• Construction: Air core, flat acrylic top

• Operating temp.: –40°C to +125°C

• Package: AWAM4024 SMD

• Compliance: RoHS

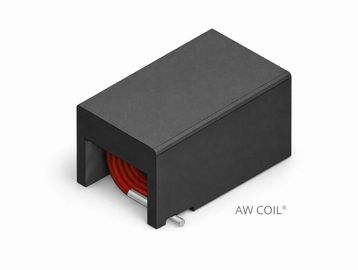

SMD flat-top air core inductors designed for RF and high-frequency applications, offering high Q, stable inductance, and reliable automated assembly.

Key Data

• Inductance range: 17.5 – 43 nH

• Rated current (max.): 4.0 A

• Q (min.): 100 @ 150 MHz

• SRF (typ.): > 1.0 – > 2.2 GHz

• DCR (max.): 4.5 – 7.9 mΩ

• Construction: Air core, flat acrylic top

• Operating temp.: –40°C to +125°C

• Package: SMTAM2410 SMD

• Compliance: RoHS

• Packaging: Tape-and-reel, 2000 pcs/reel
