Overview
AWIM-D series mini molded power inductors are designed for high current DC-DC converters and high-frequency power applications, featuring low DCR, high efficiency, and excellent EMI shielding in compact SMD packages.
Specifications
- Size: 1005 – 3525
- Inductance: 0.1µH – 22µH
- Current: up to 18A
- Temperature: –55°C to +125°C
Key Features
- Mini molded power inductor with compact SMD design
- High current inductor up to 18A
- Low DCR inductor for high efficiency power design
- Shielded SMD inductor for EMI reduction
- T-core technology for stable performance
- Optimized for high-frequency DC-DC converters (>1MHz)
Applications
- DC-DC converters / POL regulators
- PMIC output filtering
- CPU / GPU / FPGA power supply
- Industrial & telecom power systems

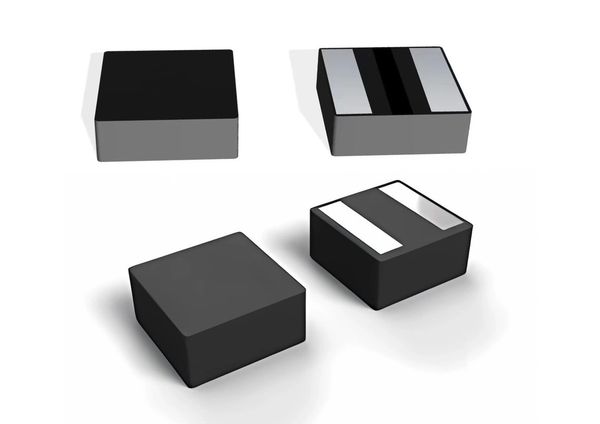

Mini Molded Power Inductor
AWIM1005D Series
AWIM1412065D Series
AWIM1412065D Series
- Size: 1.0 × 0.5 mm, H: 0.50 – 0.65 mm
- Inductance: 0.47 – 1.0 µH
- Irms: up to 1.7 A
- Isat: up to 1.85 A
- DCR: 150 – 320 mΩ
- Temp Range: –55°C to +125°C
- Shielding: Magnetically shielded
- Type: Molded power inductor
AWIM1412065D Series
AWIM1412065D Series
AWIM1412065D Series
- Size: 1.4 × 1.2 mm, H: up to 0.65 mm
- Inductance: 0.10 – 0.47 µH
- Irms: up to 6.5 A
- Isat: up to 7.0 A
- DCR: 13.5 – 35 mΩ
- Temp Range: –55°C to +125°C
- Shielding: Magnetically shielded
- Type: Hot press molded power inductor
AWIM141208D Series
AWIM1412065D Series
AWIM1608065D Series
- Size: 1.0 × 0.5 mm, H: 0.50 – 0.65 mm
- Inductance: 0.47 – 1.0 µH
- Irms: up to 1.7 A
- Isat: up to 1.85 A
- DCR: 150 – 320 mΩ
- Temp Range: –55°C to +125°C
- Shielding: Magnetically shielded
- Type: Molded power inductor
AWIM1608065D Series
AWIM1608065D Series
AWIM1608065D Series
- Size: 1.6 × 0.8 mm, H: up to 0.65 mm
- Inductance: 0.22 – 2.2 µH
- Irms: up to 4.0 A
- Isat: up to 5.0 A
- DCR: 35 – 430 mΩ
- Temp Range: –55°C to +125°C
- Shielding: Magnetically shielded
- Type: Hot press molded power inductor
AWIM201610D Series
AWIM1608065D Series
AWIM201610D Series
- Size: 2.0 × 1.6 mm, H: up to 1.0 mm
- Inductance: 0.24 – 10 µH
- Irms: up to 6.8 A
- Isat: up to 8.0 A
- DCR: 12 – 483 mΩ
- Temp Range: –55°C to +125°C
- Shielding: Magnetically shielded
- Type: Hot press molded power inductor
AWIM201612D Series
AWIM1608065D Series
AWIM201610D Series
- Size: 2.0 × 1.6 mm, H: up to 1.2 mm
- Inductance: 0.10 – 6.8 µH
- Irms: up to 12.0 A
- Isat: up to 13.0 A
- DCR: 4.0 – 300 mΩ
- Temp Range: –55°C to +125°C
- Shielding: Magnetically shielded
- Type: Hot press molded power inductor
AWIM252010D Series
AWIM252010D Series
AWIM252010D Series
- Size: 2.5 × 2.0 mm, H: up to 1.0 mm
- Inductance: 0.47 – 22 µH
- Irms: up to 6.5 A
- Isat: up to 6.9 A
- DCR: 13 – 1300 mΩ
- Temp Range: –55°C to +125°C
- Shielding: Magnetically shielded
- Type: Hot press molded power inductor
AWIM252012D Series
AWIM252010D Series
AWIM252010D Series
- Size: 2.5 × 2.0 mm, H: up to 1.2 mm
- Inductance: 0.22 – 10 µH
- Irms: up to 11.0 A
- Isat: up to 12.0 A
- DCR: 8.0 – 400 mΩ
- Temp Range: –55°C to +125°C
- Shielding: Magnetically shielded
- Type: Hot press molded power inductor
AWIM352512D Series
AWIM252010D Series
AWIM352512D Series
- Size: 3.2 × 2.5 mm, H: up to 1.2 mm
- Inductance: 0.10 – 10 µH
- Irms: up to 12 A
- Isat: up to 18 A
- DCR: 5 – 230 mΩ
- Temp Range: –55°C to +125°C
- Shielding: Magnetically shielded
- Type: Hot press molded power inductor
